ATTENTION:
We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
Welcome customize shell,weight, size,MBS,technology,etc !
Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V
Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
Parameter
Item

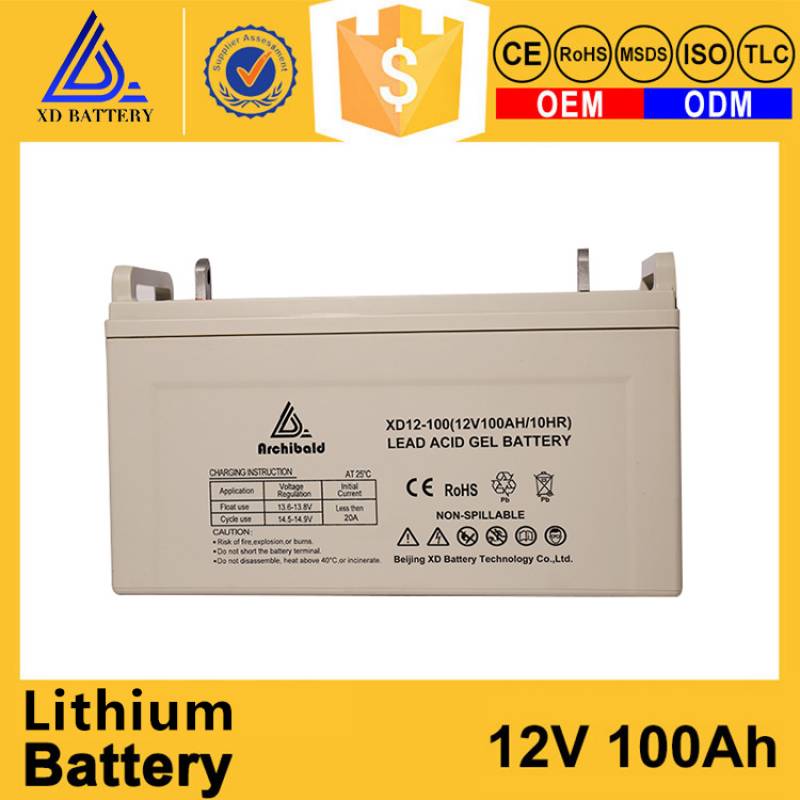

12v 100ah lifepo4 battery pack
Brand
Archibald
Type
Lithium Iron Phosphate
Part No.:
LiFePO4 battery
Voltage Nominal
12.8V (Customized 3.2V 12V 24V 36V 48V)
Capacity Nominal
100AH
Max Discharge Current
100A Or Customized
Max Charge Current
60A Or Customized
Weight
15kg Or Customized
Dimension
329*172*243mm Or Customized
Operating Temperature Range
Charge:0 to +60°C
Discharge: -20 to +60℃
Life Cycle
More than 2000times (100%DOD)
Package
ABS/Metal Case Or Customized
Customized
Shell, Size, Weight, Color, Label, Current, Technology,etc can be customized
10 Advantages
1. Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages, high currents, short circuits;
2. Long cycle life, 100%DOD cycle for more than 2000 cycles remaining capacity more than 70%.
3. High energy density, low internal resistance;
4. Excellent safety performance, no explosion, no fire;
5. Good storage characteristics
6. Good high or cold temp performance
7. High capacity & light weight
8. Environmentally friendly
9. No memory effect
10. LCD display can be add.
Aging Test
Strict Quality Control: Cell test and battery pack test before producing & delivering.
As usual, we produced a batch of cells, and need do below test firstly.
a) capacity test,
b) high current discharge test,
c) low temperature test,
d) cycle performance test,
e) short circuit test,
f) overcharge test,
g) crush test,
h) impact test,
i) vibration test,
j) hot test.
Applications
1. Golf trolleys, Golf carts,
2. UPS backup
3. Fire alarm and security systems
4. Telecommunication equipment
5. Electric equipment and telemeter equipment
6. Light equipment, dc 12v led lights
7. Wireless lawn movers vacuum cleaner and washing machine
8. Toys and consumer electronics
9. Solar systems 12v
10.Portable power tools measuring and medical equipment
11.Portable video camera portable personal computer
12.Garden lighting
13.Sound systems
OEM/ODM
|
1.Make your LOGO battery by free.
3.Make your required technology.2.Meet your packaging request by free. 4.Customized Color, Size, Weight,etc. |
 |
Welcom to contact us get discount !
