Parameters of Battery Pack
|
Model of battery pack |
51.2V200AH
|
|
Nominal voltage |
51.2V
|
|
Rated capacity |
200AH |
|
Rated reserved energy |
10.24KWH |
|
Standard charging current |
0.2C |
|
Total charging cut-off voltage |
58.4 |
|
Cut-off voltage of charging monomer |
3.65V |
|
Standard discharging current |
0.2C |
|
Maximum continuous discharging current |
100A |
|
Cut-off voltage of discharging |
43.2V |
|
Charging temperature range |
0℃～45℃ |
|
Discharging temperature range |
-20℃～60℃ |
|
Single module Size(W×L×H) |
600*442*230mm(excluding pylons)
|
|
Weight 1PCS |
Single module 90kg±5% |
Technical Parameters of Battery Management System (BMS)
|
Items |
Details |
Standard |
|
Cell overcharge protection
|
Overcharge detection voltage |
3.65V |
|
Overcharge detection delay time |
Typical:1.0s |
|
|
Overcharge release voltage |
3.40V |
|
|
Cell over-discharge protection
|
Over-discharge detection voltag |
2.70V |
|
Over-discharge detection delay time |
Typical:1.0s |
|
|
Over-discharge release voltage |
2.90±V or charge release |
|
|
Over-current protection |
discharge Over-current protection current1 |
110A |
|
discharge Over-current detection delay time 1 |
15S |
|
|
discharge Over-current protection current 2 |
120A |
|
|
discharge Over-current detection delay time 2
|
≤500ms |
|
|
Charge OC protection current |
110A
|
|
|
Short protection |
Short protection current |
412A
|
|
Protection condition |
External load short circuit |
|
|
Detection delay time |
≤500us |
|
|
Protection release condition |
Charge release or reset |
|
|
Temperature(T) protection |
Charge high T protection |
55±5℃ |
|
Charge high T recover |
50±5℃ |
|
|
Discharge high protection |
60±5℃ |
|
|
Discharge high T recover |
60±5℃ |
|
|
Charge low T protection |
-5±5℃ |
|
|
Charge low T recover |
0±5℃ |
|
|
Discharge low T protection |
-20±5℃ |
|
|
Discharge low T recover |
-10±5℃ |
|
|
Balance |
Balance threshold voltage |
3.50V |
|
Communication |
It has RS485 and CAN standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
|
|
Alarm |
It has over-temperature, over charge, under-voltage, over-current, short circuit alarm Function. |
|
24V 100AH Lifepo4 Battery for RV, Motorhomes, Caravans, solar trailer, residential solar off grid
2v 500ah Solar OPzS Battery Rechargeable Good Sealed
Lead Acid Battery 12V 250Ah Custom LOGO Deep Cycle Battery

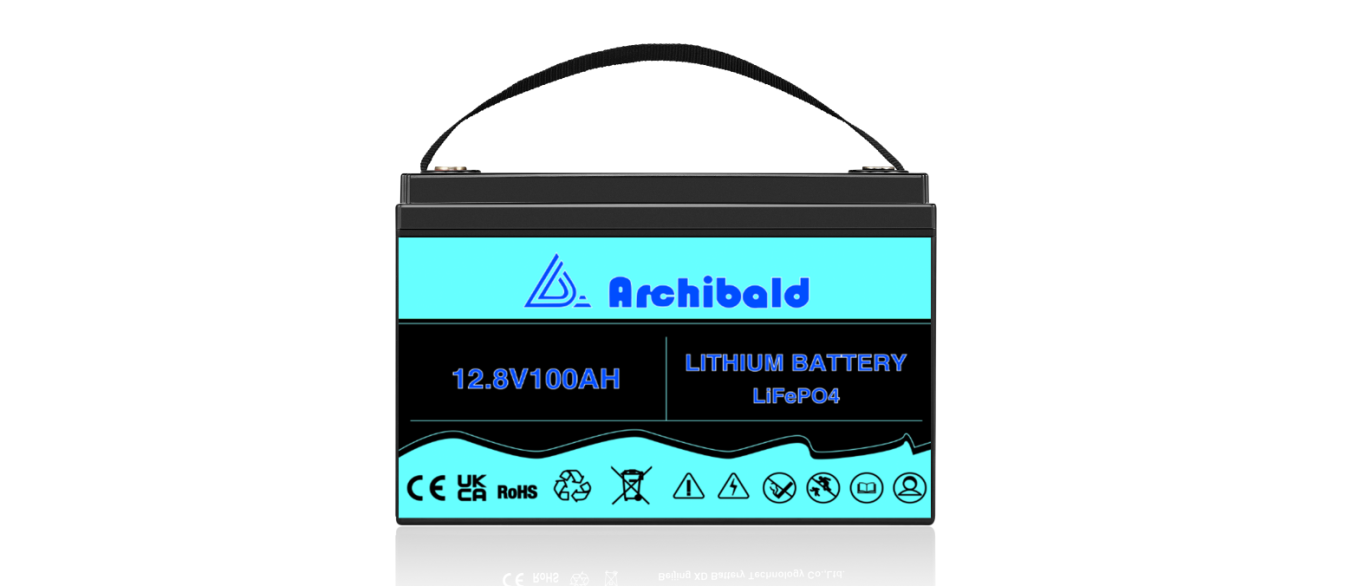

12V 100AH Lifepo4 Lithium Battery Pack for RVs, Caravans, Motorhomes
