3kva 6kva 10kva 30kva 100kva 200kva to 800kva Online UPS Price

3kva 6kva 10kva 30kva 100kva 200kva to 800kva UPS

Easily to Solve 9 Major Problems 30kva ups

1.Lightniing-Proof , Anti-Surge
2.Overvoltage
3.Undervoltage
4.Transient
5.Harmonic distortioin
6.Electronic jamming
7.Electricity interruption
8.Frequency fluctuation
9.Power sags

|Technical Specification

Model

10K

30K

40K

60K

80K

100K

120K

160K

200K

300K

400K

Capacity(KW)

8KW

16KW

24KW

32KW

48KW

64KW

80KW

96KW

128KW

160KW

340KW

320KW

Work Way

Online supply power,Static bypass switch, double conversion technology

Phase

3 phase + N + G

Input voltage

380VAC±25%

Input frequency

50Hz ± 10% , 60Hz ± 10%

Soft start

0-100% 5 sec

Battery NO.

32pca(42pcs)-12V

Battery Voltage

384 VDC(480VDC)

Float Voltage

405 VDC(240VDC)

Charger current

1A-40A (base on your battery capacity)

Rated power

capacity × 0.8

Phase

3 phase + N + G

Output voltage

380VAC±1%(balance load), 380VAC±5%(non-balance load)

Output frequency

50Hz±0.05% , 60Hz±0.05%(battery supply power)

Crest Factor

3: 1

Waveform

Pure sine wave

THD

Linear load<2% , non-linear load <5%

Dynamic voltage

<±5%

Instant recovery time

<10ms

Balance load voltage

<±1% , <±5% (unlalance load voltage)

Over load

125% 1min , 150% 1s

Inverter efficiency

>91%

Transfer time

0ms

Communication interface

Rs232 , 485

Work temperature

0-40℃

Humidity

30%-90%

Altitude

<1000 meters (the power will cut down 1% when the altude add every 100 meters, the max altitude is 4000 meters)

Noise db

40-50

45-55

55-65

65-75

Product size

10-20K

30-40K

60-120K

100-200K

300-400K

60.5*40.5*91.5

82*43*116

97.5*55.5*129

180*110*168

2200*850

Weight

140

210

280

320

420

490

560

680

900

2100

2200

2500

Optinal

Paralled module, fiter, inpute is olatioin transformer, intelligent monitoring software, SNMP adapter

|Feature Technical Specification

* Double conversion online technology.

* MCU intelligent control.
* Wide input voltage range.
* LCD and LED user interface.
* Advanced battery management(ABM).
* Cold start.
* Short circuit and overload protection.
* Self-test when UPS start.
* Auto restart after utility power restore when UPS shutdown due to battery low.
* Over temperature and over voltage protection.
* Optional extension battery pack.
* EMI/RFI noise filter.

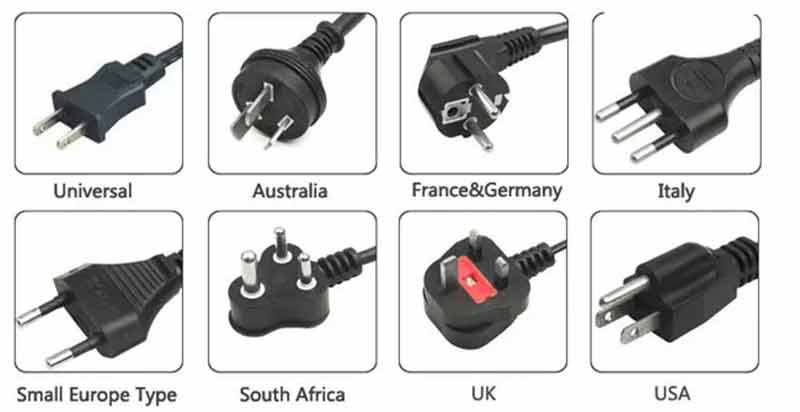

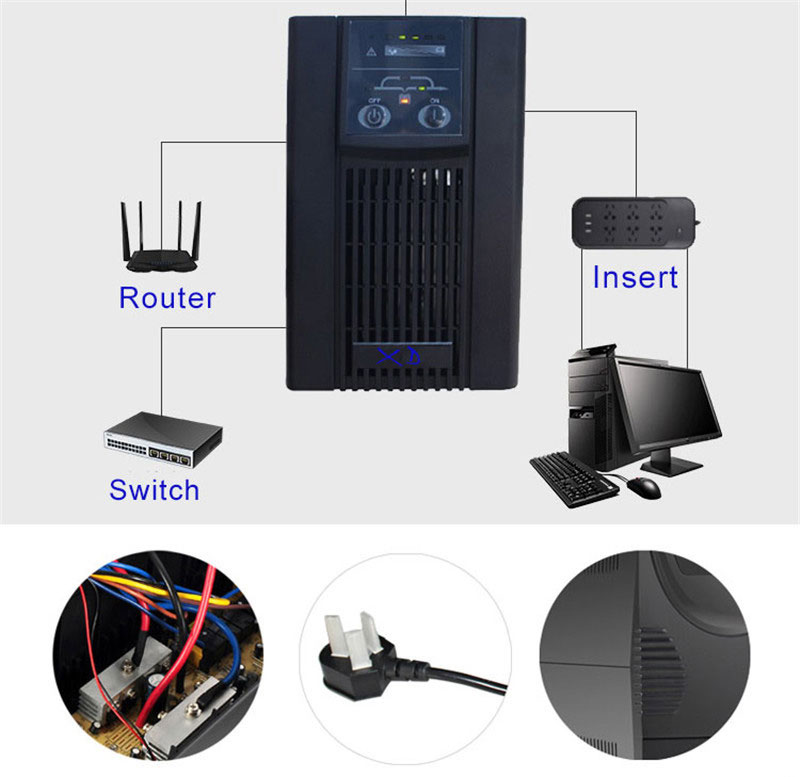

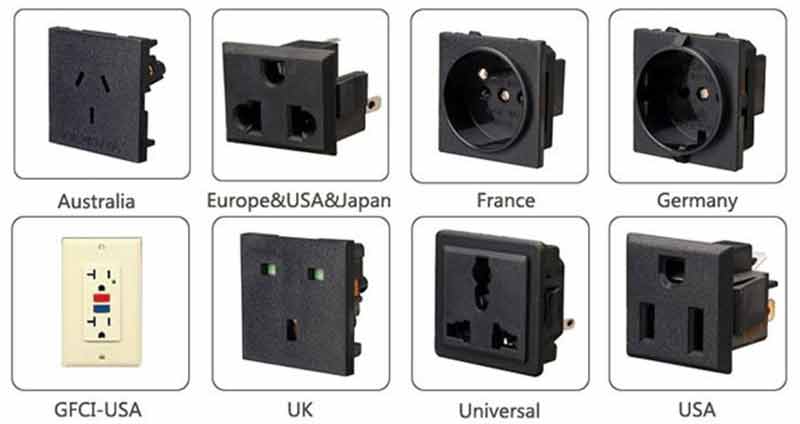

	More outlets Meets more rquirementsUp to 4 international 3-holeoutput sockets can meet yourmore needs. Alllike com putermainframes, monitors, stereos, .routers, etc., can be used tohelp you save money.Well-known brand battery.
	3 Years Warranty Storage battery is one of themain components of UPS, decide the discharge time ofthe UPS and service life of theuninterruptible power supply.XD offer 3 years warranty, life-time maintain service.

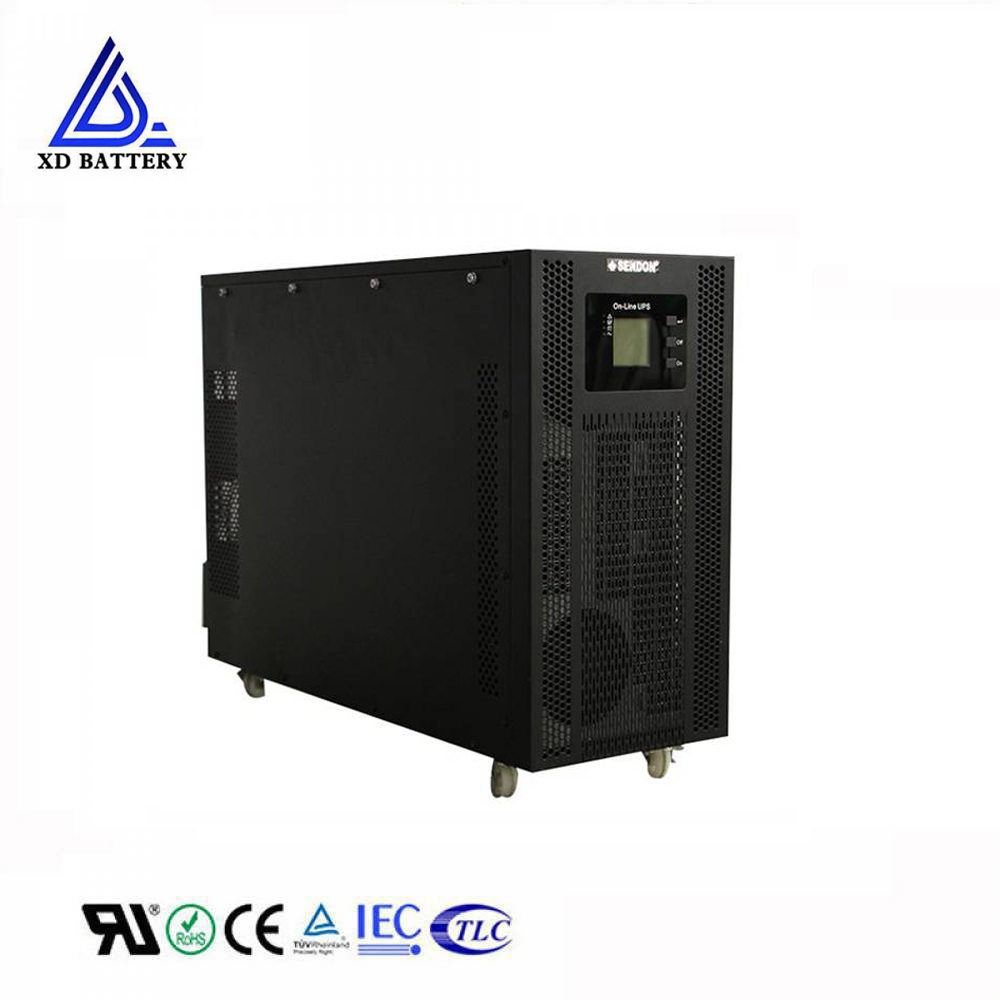

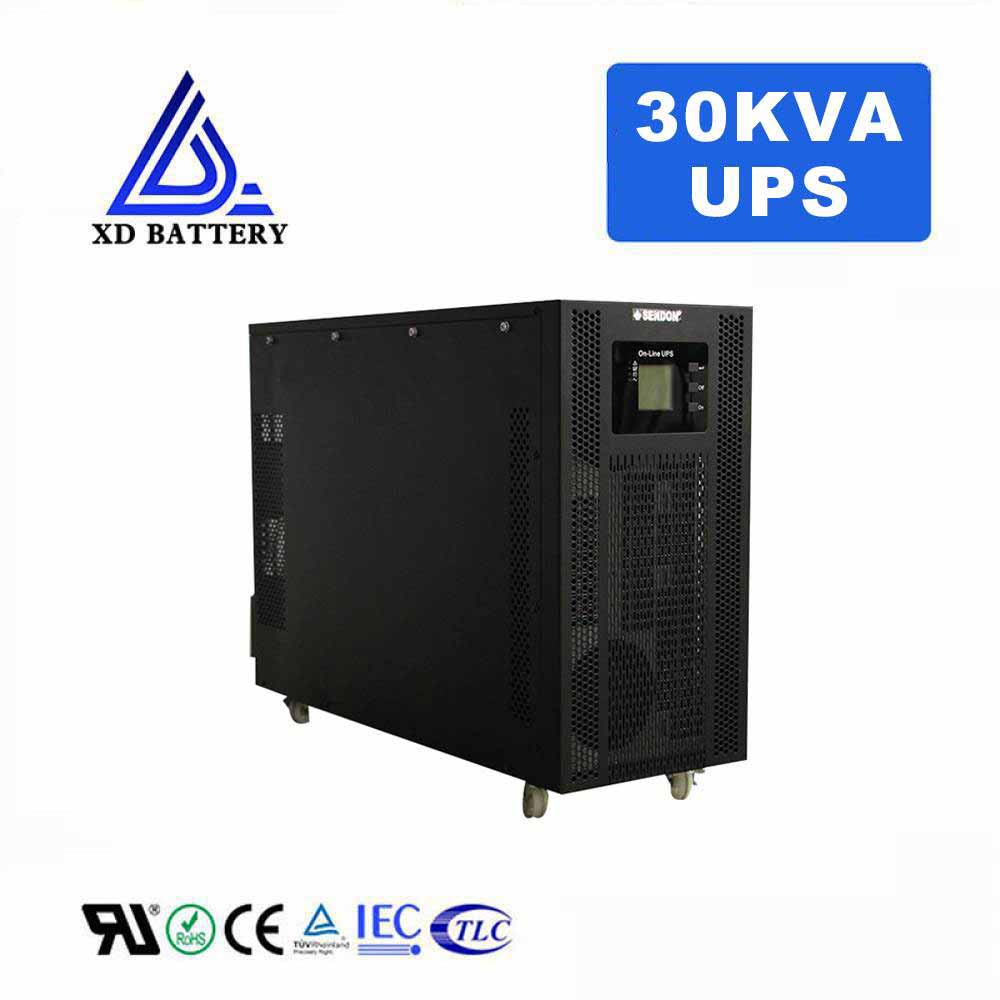

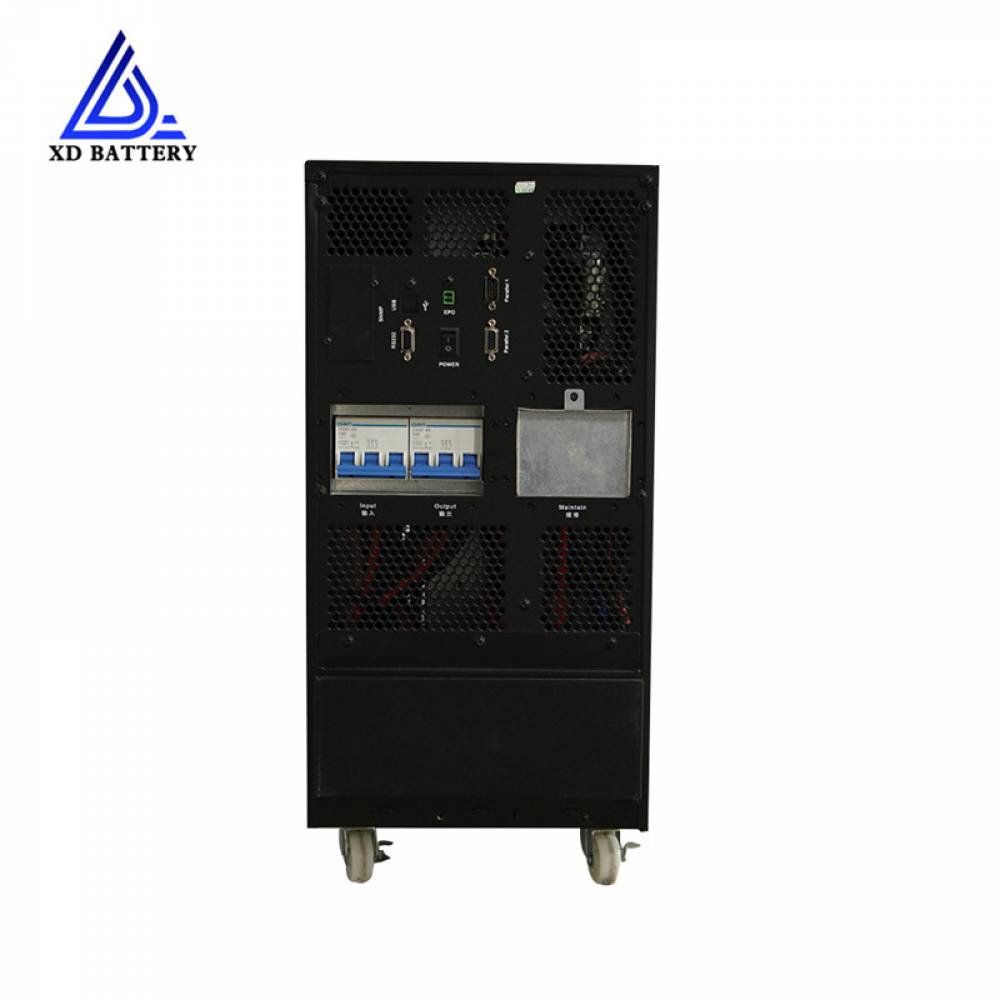

30kva ups

Intelligent Chipset | High quality materials ,safety standards | Green flameretardant shell

Different size patch board

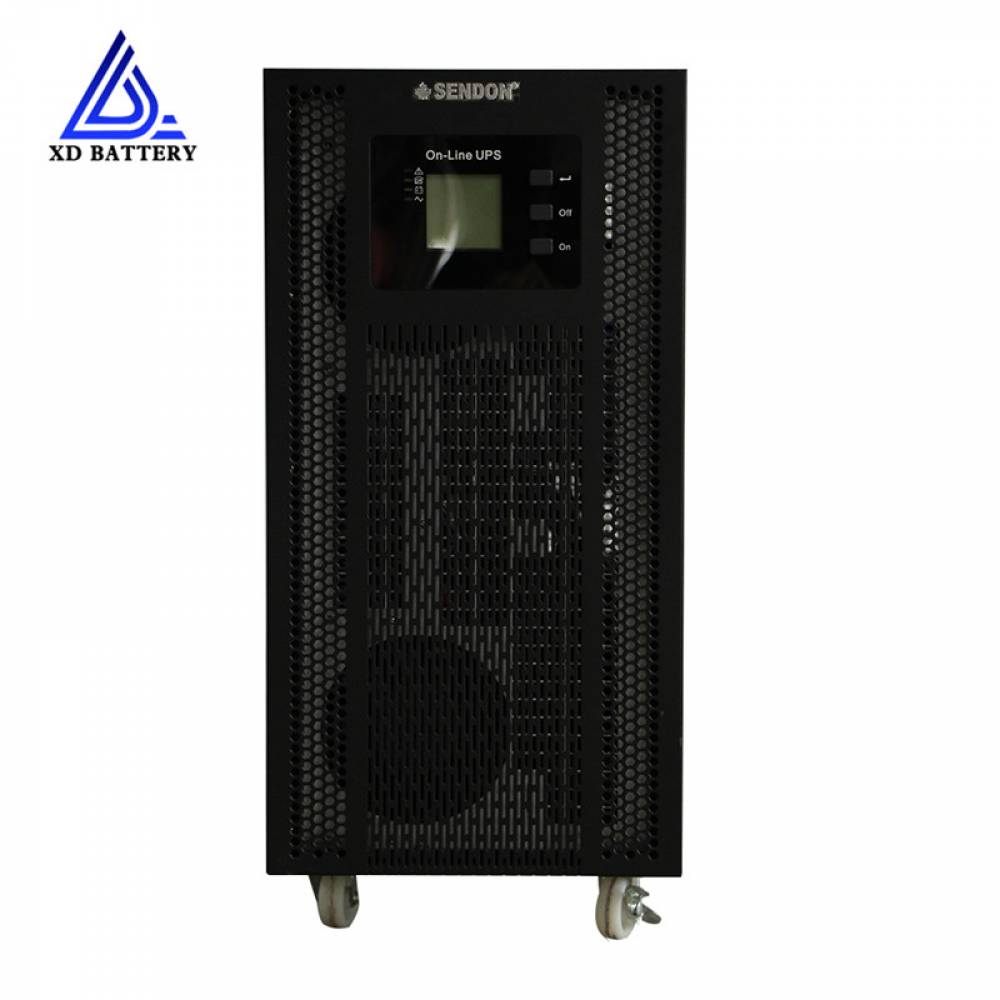

30kva ups

|Application

	Computer System Protect hardware devices from damage caused by commercial power conflicts and loss of data You can automatically archive files and then shut down the computer, when the computer installs Win power monitoring software,

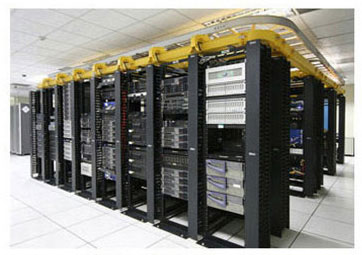

	Network Equipment At the end of the market point, c1-3kva canbe transferred to the regulator and router toensure the normal operation of network equipment at the same time.
	Business/Office Equipment Protect ATM equipment, POS machines, printers, scanners,fax machines and other office equipmentDamage caused by surge current surges.

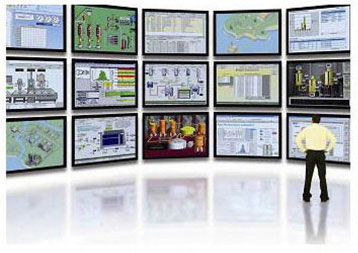

	Monitoring and Automation Control System Excellent quality, stable work, easy to deal with allkinds of harsh environment, ensure the safe oper-ation of monitoring system, electric locomotiverailway signal system, SCADA system, etc.
