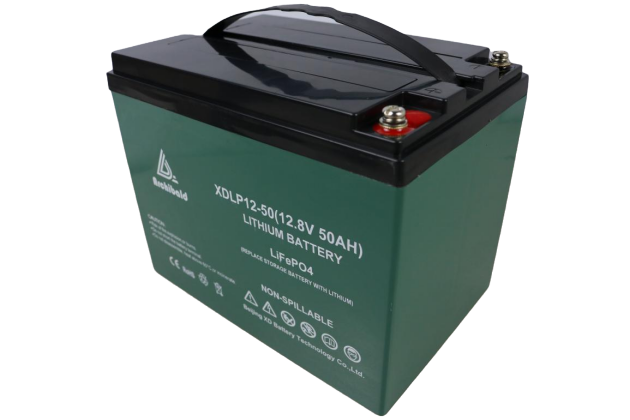

| Nominal Voltage | 12.8 V |
| Nominal Capacity | 50 Ah |
| Energy | 640 Wh |
| Resistance | ≤1.5mΩ |
| Efficiency | 99% |
| Self Discharge | ≤3.5% per month |
| Recommended Charge Current | 12.5A - (Range: 0.2C-0.5C) |
| Maximum Continous Charge Current | 50 A (1C) |
| Recommended Charge Voltage | 14.6 V |
| BMS Charge Voltage Cut-Off | 14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 14.2 V (3.8 ±0.05 vpc) |
| Balancing Voltage | 13.6 V (3.6 ±0.025 vpc) |
| Maximum Continuous Discharge Current | 50 A |
| Peak Discharge Current | 180 A (7 -9 s) |
| BMS Discharge Current Cut-Off | 240 A (5 -12 ms) |
| Recommended Low Voltage Disconnect | 9.4 V |
| BMS Discharge Voltage Cut-Off | 9.4 V (2.0 ±0.08 vpc) (140 ±60 ms) |
| Reconnect Voltage | 10.0 V (2.3 ±0.1 vpc) |
| Short Circuit Protection | 200-300 µs |
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 170 ºF (77 ºC) |
| Reconnect Temperature | 163 ºF (73 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
| Dimensions (L x W x H) | 9.1 x 5.5 x 8.2” (229 x 138 x 208 mm) |
| Weight | 16.97lbs (7.7 kg) |
| Terminal Type | M6 (16mm) |
| Terminal Torque | 4~5 N-m |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |

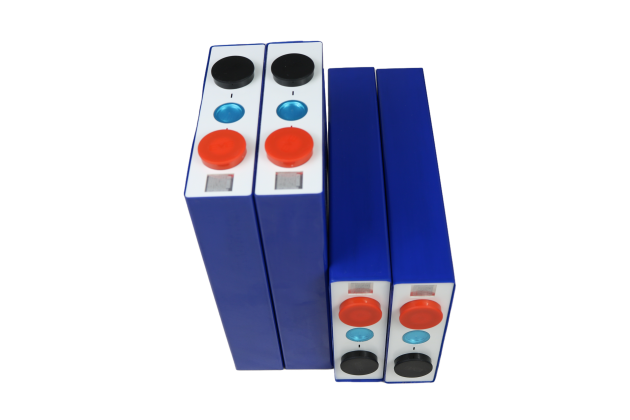

| Brand | EVE LiEnergy |
| Product | Prismatic Aluminum-clad LFP Battery |
| Model | 39148095-050Ah |
| Specification | 3.2 V / 50 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts as shown |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
| Model | LFP-4S-60A) |
| Maximum Continous Discharge Current | 60A |
| Cell Balancing | 3.4V (13.6V) |
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 0C Disconnect, 5C Reconnect |
| Short Circuit Protection | yes |
| Dimensions (L x W x H) | 9.1 x 5.5 x 8.2” (229 x 138 x 208 mm) |
| Terminal Type | M8 (20mm) |
| Terminal Torque | 4~5 N-m |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Dimensions (L x W x H) | 11.02 x 7.48 x 10.43" (280 x 190 x 265mm) |
| Weight | 17.64lbs (9 kg) |
