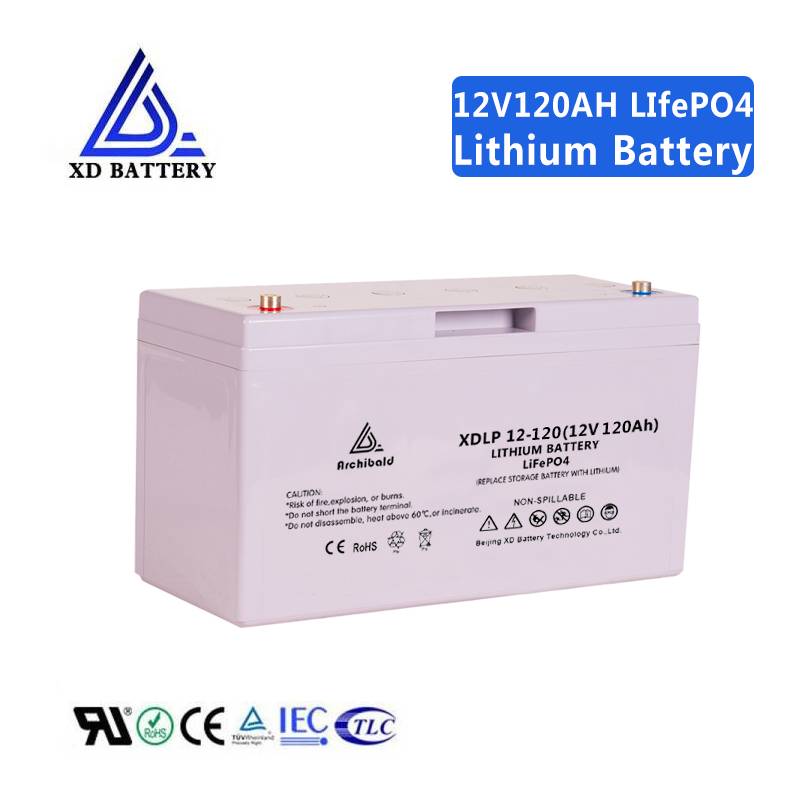

Lithium Lifepo4 12V 120AH UPS Battery Deep Cycle Long Life

Lithium Lifepo4 12V 120AH UPS Battery Deep Cycle Long Life

ATTENTION:

We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !

Welcome customize shell,weight, size,MBS,technology,etc !

Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V

Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah

Parameter

Item	12v 120ah lifepo4 battery pack
Brand	Archibald
Type	Lithium Iron Phosphate
Part No.:	LiFePO4 battery
Voltage Nominal	12.8V (Customized 3.2V 12V 24V 36V 48V)
Capacity Nominal	120AH
Max charge current	60A Or Customized
Max Discharge Current	120A Or Customized
Weight	16kg Or Customized
Dimension	406*174*232mm Or Customized
Operating Temperature Range	Charge:0 to +60°C
	Discharge: -20 to +60℃
Life Cycle	More than 2000times (100%DOD)
Package	ABS/Metal Case Or Customized
Customized	Shell, Size, Weight, Color, Label, Current, Technology,etc can be customized

10 Advantages

1. Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages, high currents, short circuits;

2. Long cycle life, 100%DOD cycle for more than 2000 cycles remaining capacity more than 70%.

3. High energy density, low internal resistance;

4. Excellent safety performance, no explosion, no fire;

5. Good storage characteristics

6. Good high or cold temp performance

7. High capacity & light weight

8. Environmentally friendly

9. No memory effect

10. LCD display can be add.

Aging Test

Strict Quality Control: Cell test and battery pack test before producing & delivering.

As usual, we produced a batch of cells, and need do below test firstly.
a) capacity test,
b) high current discharge test,
c) low temperature test,
d) cycle performance test,
e) short circuit test,
f) overcharge test,
g) crush test,
h) impact test,
i) vibration test,
j) hot test.

Applications

1. Golf trolleys, Golf carts,

2. UPS backup

3. Fire alarm and security systems

4. Telecommunication equipment

5. Electric equipment and telemeter equipment

6. Light equipment, dc 12v led lights

7. Wireless lawn movers vacuum cleaner and washing machine

8. Toys and consumer electronics

9. Solar systems 12v

10.Portable power tools measuring and medical equipment

11.Portable video camera portable personal computer

12.Garden lighting

13.Sound systems

OEM/ODM

4.Customized Color, Size, Weight,etc. 4.Customized Color, Size, Weight,etc.

1.Make your LOGO battery by free. 2.Meet your packaging request by free. 3.Make your required technology. 4.Customized Color, Size, Weight,etc.

Welcom to contact us get discount !
